Chapter 13.1

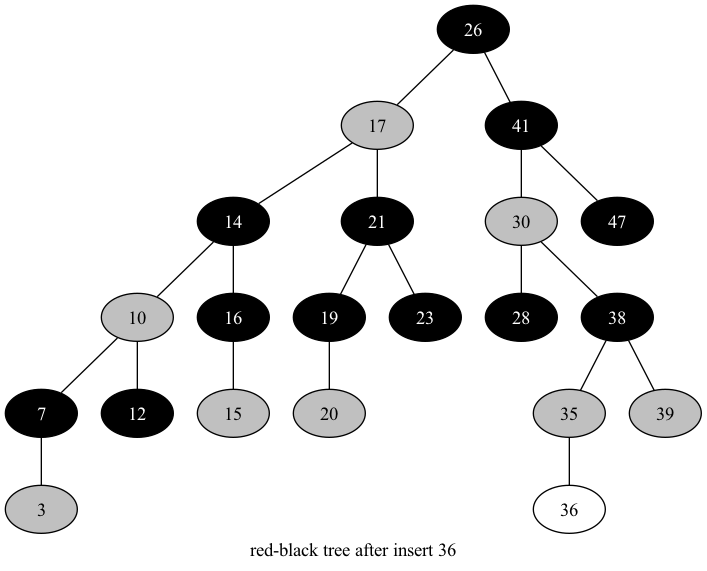

Below is the tree after the node with key \(36\) is inserted.

If we color the inserted node red, the resulting tree is not a red-black tree, because the parent of the node is also colored red.

If we color the inserted node black, the resulting tree is not a red-black tree, because not all the simple paths from the root to descendant leaves contain the same number of black nodes.

The resulting tree will still be a red-black tree, because the trees rooted at \(T.root.left\) and \(T.root.right\) were red-black trees, and after we colored the root of \(T\) black, the tree \(T\) become a red-black tree.

The degree of a node is the number of edges connected to the node. Below are the possible degrees of a black node after all its red children are absorbed.

Degree	Possible state of the node before absorption
0	The root of the tree with no child.
1	A leaf.
2	The root of the tree with two black children.
3	A non-root internal node with two black children.
4	A non-root internal node with a black child and a red child, and
	the red child has two black children.
5	A non-root internal node with two red children, and each red
	child has two black children.

The depths of the leaves of the resulting tree is the black height of the root in the original tree.

Since the children of a red node must be black, we know that the length of the longest simple path from a node \(x\) to a descendant leaf is at most \(2bh(x)\), and the shortest simple path from a node x to a descendant leaf is at least \(bh(x)\).

The largest possible number of internal nodes is \(2^{2k} - 1\), and the smallest possible number is \(2^k-1\).

The red-black tree on \(3\) keys with \(2\) red children of the root, has the largest possible ratio \(2\). The red-black tree which is a complete binary tree constructed by all black nodes, has the smallest possible ratio \(0\).
