Chapter 13.4

In both cases, we won't change the color of the root, thus after executing RB-DELETE-FIXUP, the root of the tree must be black.

If we have colored both \(x\) and \(x.p\) red, the call to RB-DELETE-FIXUP will simply color \(x\) black, and restore property 4.

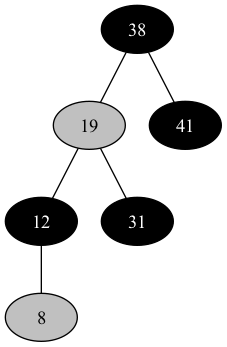

1. The initial tree.



2. Delete \(8\).



3. Delete \(12\).



4. Delete \(19\).



5. Delete \(31\).



6. Delete \(38\).



7. Delete \(41\), the tree becomes empty.

We might examine or modify the sentinel \(T.nil\) in those lines as below.

• Line 1, since \(x\) might be \(T.nil\), and we examine the condition \(x.color == BLACK\).
• Line 2, since \(x\) might be \(T.nil\), and we examine the condition \(x == x.p.left\).
• Line 9, since both \(w.left\) and \(w.right\) might be \(T.nil\), and we examine the conditions \(w.left.color == BLACK\) and \(w.right.color == BLACK\).
• Line 12, since \(w.right\) might be \(T.nil\), and we examine the condition \(w.right.color == BLACK\).
• Line 20, since \(w.left\) might be \(T.nil\), and we modify \(w.left.p\) from \(w\) to \(x.p\).
• Line 23, since \(x\) might be \(T.nil\), and we modify \(x.color\) to \(BLACK\).

• Case 1

  	Before transformation	After transformation
  α	2	2
  β	2	2
  γ	2	2
  δ	2	2
  ε	2	2
  ζ	2	2

• Case 2

  	Before transformation	After transformation
  α	color(c) + 1	color(c) + 1
  β	color(c) + 1	color(c) + 1
  γ	color(c) + 2	color(c) + 2
  δ	color(c) + 2	color(c) + 2
  ε	color(c) + 2	color(c) + 2
  ζ	color(c) + 2	color(c) + 2

• Case 3

  	Before transformation	After transformation
  α	color(c) + 1	color(c) + 1
  β	color(c) + 1	color(c) + 1
  γ	color(c) + 1	color(c) + 1
  δ	color(c) + 1	color(c) + 1
  ε	color(c) + 2	color(c) + 2
  ζ	color(c) + 2	color(c) + 2

• Case 4

  	Before transformation	After transformation
  α	color(c) + 1	color(c) + 1
  β	color(c) + 1	color(c) + 1
  γ	color(c) + color(c') + 1	color(c) + color(c') + 1
  δ	color(c) + color(c') + 1	color(c) + color(c') + 1
  ε	color(c) + 1	color(c) + 1
  ζ	color(c) + 1	color(c) + 1

In case 1, \(x\)'s sibling \(w\) is a red node, and we left both \(w\) and its parent \(p\) untouched before RB-DELETE-FIXUP, thus \(p\) must be black at the start of case 1, otherwise we violate red-black property 4.

The resulting tree may not be the same as the initial red-black tree. Below is the counter example.

1. The initial tree.



2. Insert \(8\).



3. Delete \(8\).
